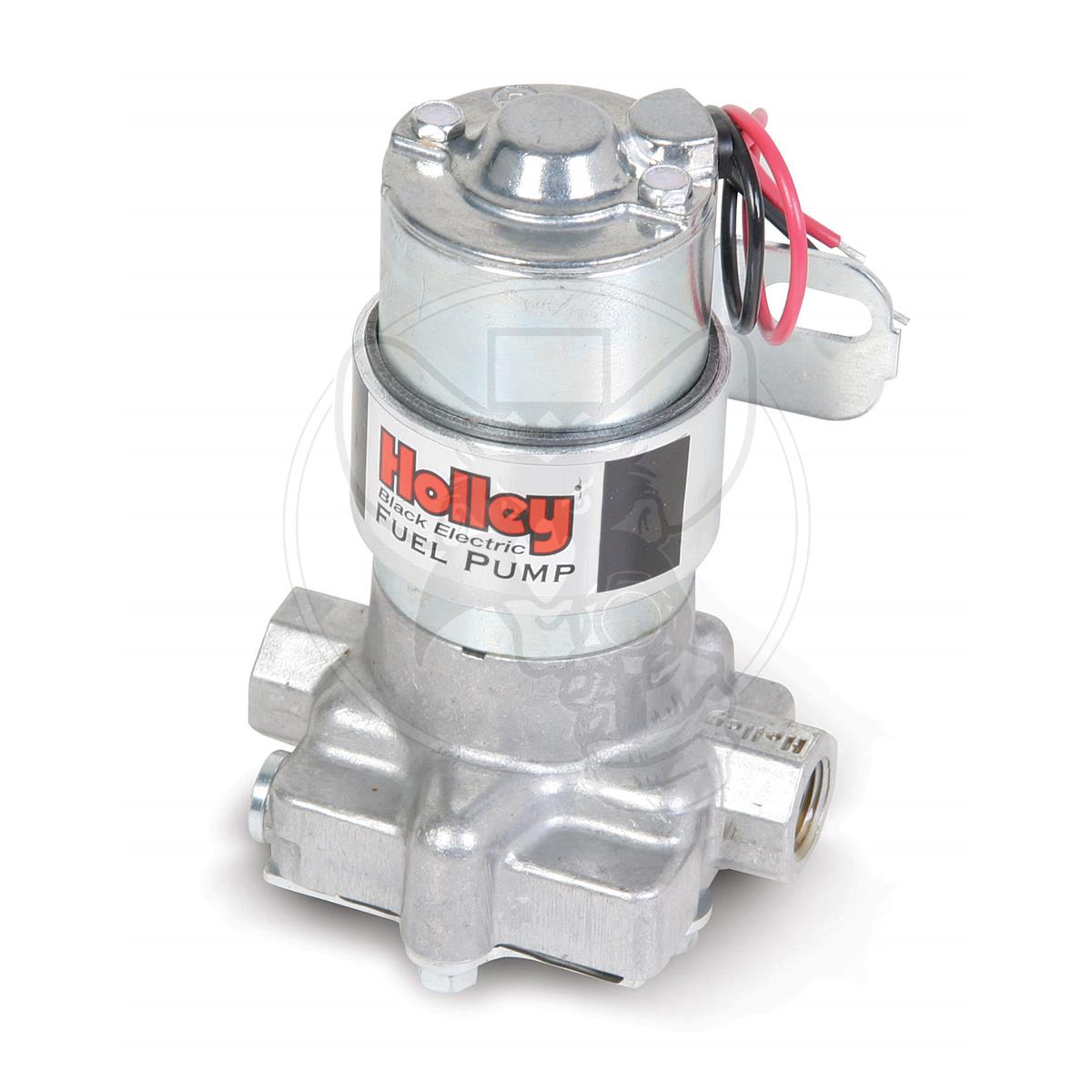

The world famous Red®,Blue®and Black®fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package.
Features:
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow
- Improved design for street/strip applications
- Distinctive“Black”logo
- Compatible with alcohol or methanol fuels
- Not designed for use on aircraft of any type.
- Flows 140 GPH (free flow)
- Flows 120 GPH at 9 psi
- Maximum pressure is 14 psi
- 3/8”NPT inlet and outlet ports
- Fuel pressure regulator is required (recommend Holley P/N 12-704 for gasoline& P/N 12-707 for alcohol)
- Motor draws only 4 amps current
- Relay kit P/N 12-753& 7 1/2 amp fuse recommended
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Use of safety shut-off switch,P/N 12-810,strongly recommended
- Not designed or recommended for use with fuel injection systems
| Categories | Air & Fuel Delivery |
|---|---|
| Weight | 1.2200 |
| Manufacturer Part Number | 12-815-1 |
| Brand | Holley |
| Part Type | Fuel Pumps - Electric |
| Interchange Part Number | 12-815-1 |
| Fuel Type | Gasoline |
| Construction | Aluminum |
