HOLLEY INTAKE MANIFOLD FITS CHEV LS1/2/6 HI-RAM EFI FITS 92MM LS T/BODY
Product image(s) are for illustration purposes only.
Actual product may vary.

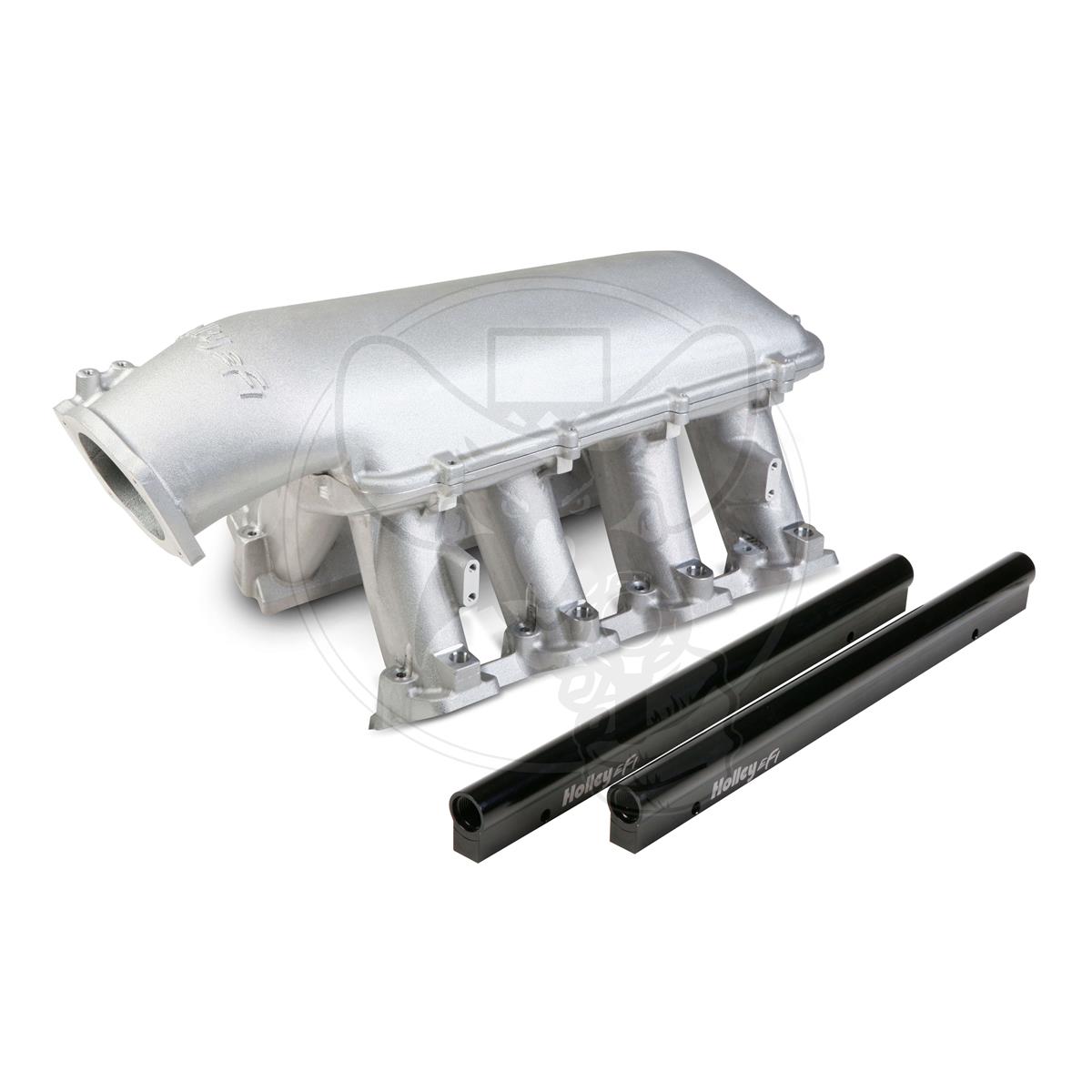

HO300-122 - HOLLEY INTAKE MANIFOLD FITS CHEV LS1/2/6 HI-RAM EFI FITS 92MM LS T/BODY

SKU: HO300-122

Part Type: Intake Manifolds

Brand: Holley

Holley

Availability: 1 to 5 Days - From Warehouse

Price: $2,191.05



Ships within 5 online business day(s) of cleared payment.
Orders after 2pm (South Australian Time) are processed the next online business day.

Estimate Shipping

The Holley GM LS1/LS2/LS6 Modular Hi–Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet–metal for high–performance applications where induction system height is not limited. Coupling this Hi–Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget–minded cost. Aggressive,bold,race–bred styling will make bad intentions clear for drag race,muscle car,marine,off–road,sandrails,pulling trucks,track,street–rod applications and more!•The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.•Runner length and the tapered cross–section designed to perform well for a wide range of engine configurations•EFI fuel rails are machined for–8AN O–ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi–Ram kits.•Cast aluminum construction.•Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range,max power at 7000–8000+RPM.

Features:

  • Base Plenum Top Mounting Flange Height–8.42”to the lifter valley cover flange on engine block.
  • Total Height with 92/102mm EFI Plenum Top–12.32”to the lifter valley cover flange on engine block.
  • Port Size–2.49”Height x 1.21”Wide
  • Mounting Flange Gasket Type–Standard LS3 Molded O-Ring
  • Plenum Top Gasket Type–3/32”Round O-ring Cord
  • Throttle Body Flange Location,with 92mm EFI Plenum Top:Height–8.42”(from engine block lifter valley cover flange),Longitudinal Location–3.84”(forward from engine block front flange),Angle–25 deg. (down from vertical)
  • Runner Length–6.58”,As-Cast Runner Cross-Sectional Area–Tapered 4.25 in²to 2.53 in²
Categories Air & Fuel Delivery, Engine Components
Weight 17.2900
Manufacturer Part Number 300-122
Brand Holley
Part Type Intake Manifolds
Interchange Part Number 300-122
Vehicle Make Chevrolet
Engine Type LS Series
Cylinder Head Type Standard
RPM Range 1500-7000
Manifold Type Hi-Ram
Finish Satin
Construction Cast
Engine GM LS1/LS2/LS6
