JE PISTON RING SET 4.600" BORE + .005" HNS 1/16-1/16-1/16 RINGS

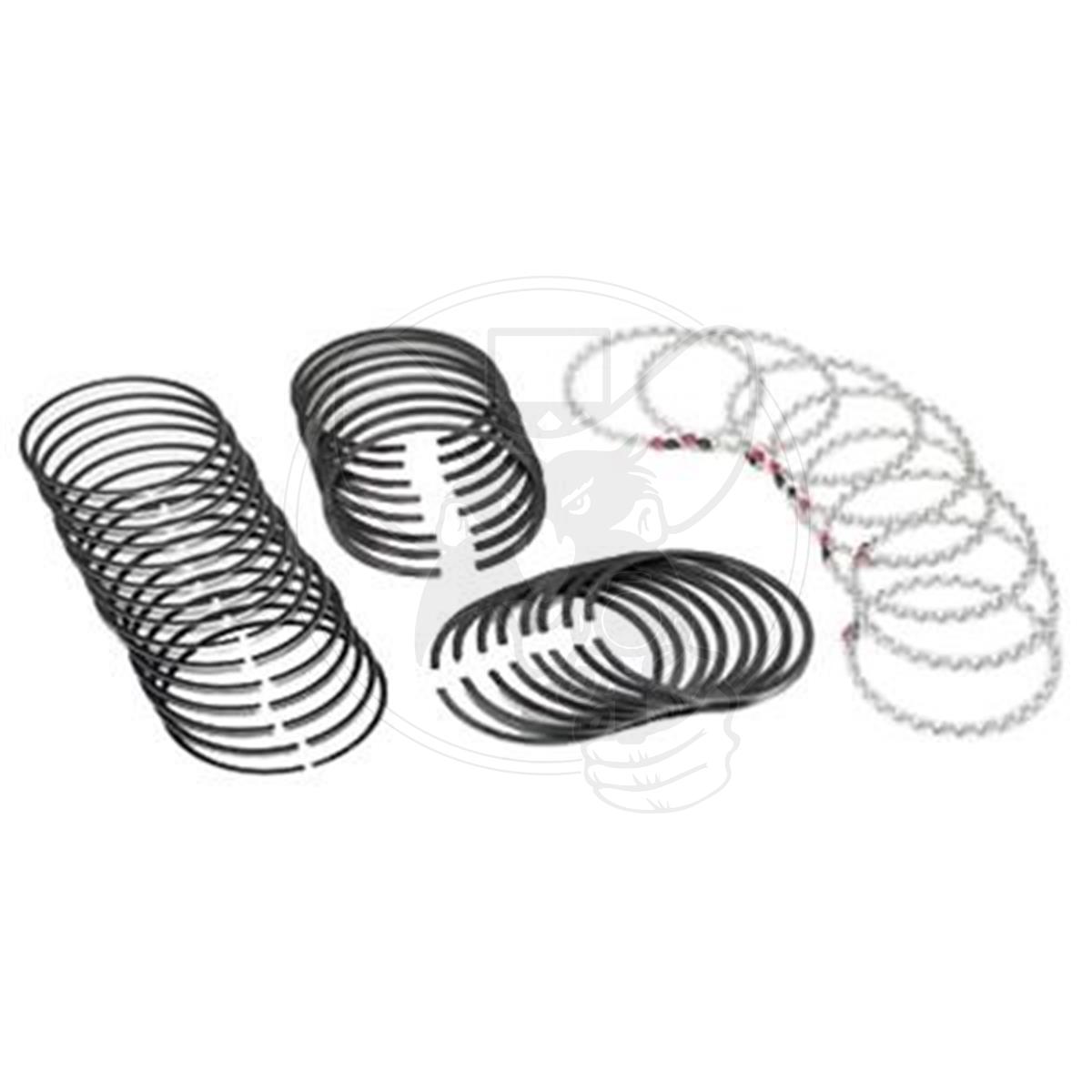

Product image(s) are for illustration purposes only.
Actual product may vary.

JJ820S8-4600-5 - JE PISTON RING SET 4.600" BORE + .005" HNS 1/16-1/16-1/16 RINGS

SKU: JJ820S8-4600-5

Part Type: Piston Ring Sets

Brand: JE Pistons

JE Pistons

Availability: 1 to 5 Days - From Warehouse

Price: $741.10



Ships within 5 online business day(s) of cleared payment.
Orders after 2pm (South Australian Time) are processed the next online business day.

Estimate Shipping

Bore (in.): 4.600 in.

Bore (mm): 116.840mm

File Fit: Yes

Gapless: No

Gas Ported: No

Top Ring Included: Yes

Top Ring Thickness: 1/16 in.

Top Ring Material: Ductile iron

Top Ring Facing Material: Phosphate coated

Second Ring Included: Yes

Second Ring Thickness: 1/16 in.

Second Ring Material: Ductile iron

Second Ring Facing Material: Phosphate coated

Oil Ring Included: Yes

Oil Ring Thickness: 3/16 in.

Oil Ring Tension: Standard

Oil Ring Material: Carbon steel

Quantity: Sold as a set.

Notes: Features Hell Fire top ring.

JE Pistons Premium Race Series Piston Rings

These JE Pistons Premium Race series piston rings offer unbeatable performance. They feature high-quality materials suitable for high-horsepower needs. When you need performance, JE Pistons has you covered.

Categories Engine Components
Weight 0.6800
Manufacturer Part Number J820S8-4600-5
Brand JE Pistons
Part Type Piston Ring Sets
Interchange Part Number J820S8-4600-5
