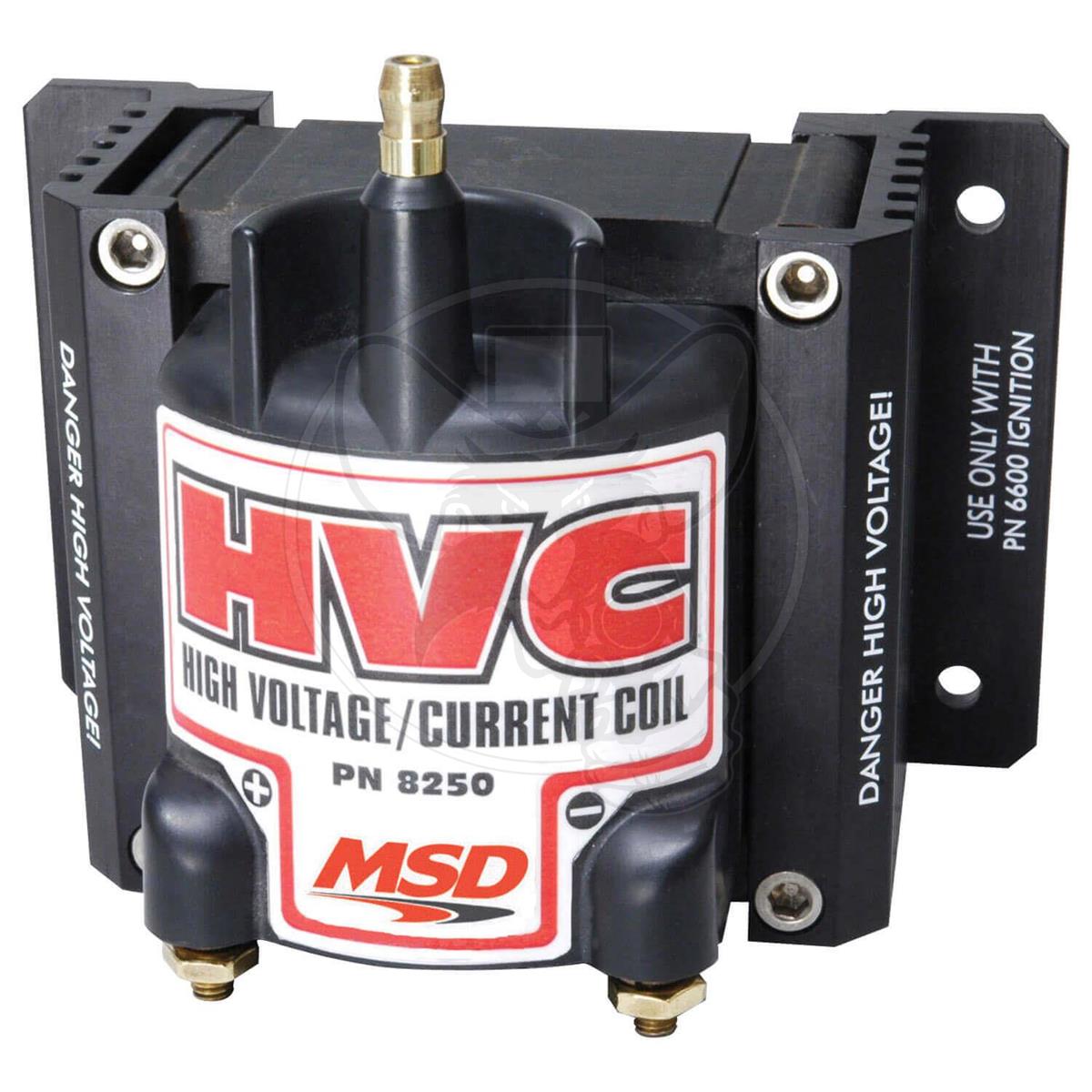

MSD 6 HVC Coil
The HVC Coil is designed exclusively for the HVC Professional Racing Ignition Control, PN 6631, PN 6632.
Overview
The E-Core design of the HVC Coil is more efficient in producing more output with less loss. Must be used with MSD 6-HVC Ignition only.
Features:
- E-Core design produces more voltage and current while running 50% cooler than canister coils
- Massive laminations and windings are engineered for less energy loss
- Delivers high voltage to ionize the plug gap while the spark glows with high current
Specifications
| Brand | MSD |
|---|---|
| Color | Black |
| Emission Code | 3 |
| Inductance | 3mH |
| Maximum voltage | 34,000 Volts |
| Peak current | 600 mA |
| Primary resistance | .07 OHMs |
| Secondary resistance | 360 OHMs |
| Spark duration | 200 uS |
| Turns ratio | 100:1 |
| Type | Circle Track |
| Weight | 3.75 lbs |
| Part Number | 8250 |
| Categories | Ignition & Electrical |
|---|---|
| Weight | 1.6300 |
| Manufacturer Part Number | 8250 |
| Brand | MSD |
| Part Type | Ignition Coils |
| Interchange Part Number | 8250 |
| Dimensions | Width: 12.70cm x Length: 12.70cm x Height: 12.70cm |
| GTIN | 085132082506 |
| Colour | Black |
