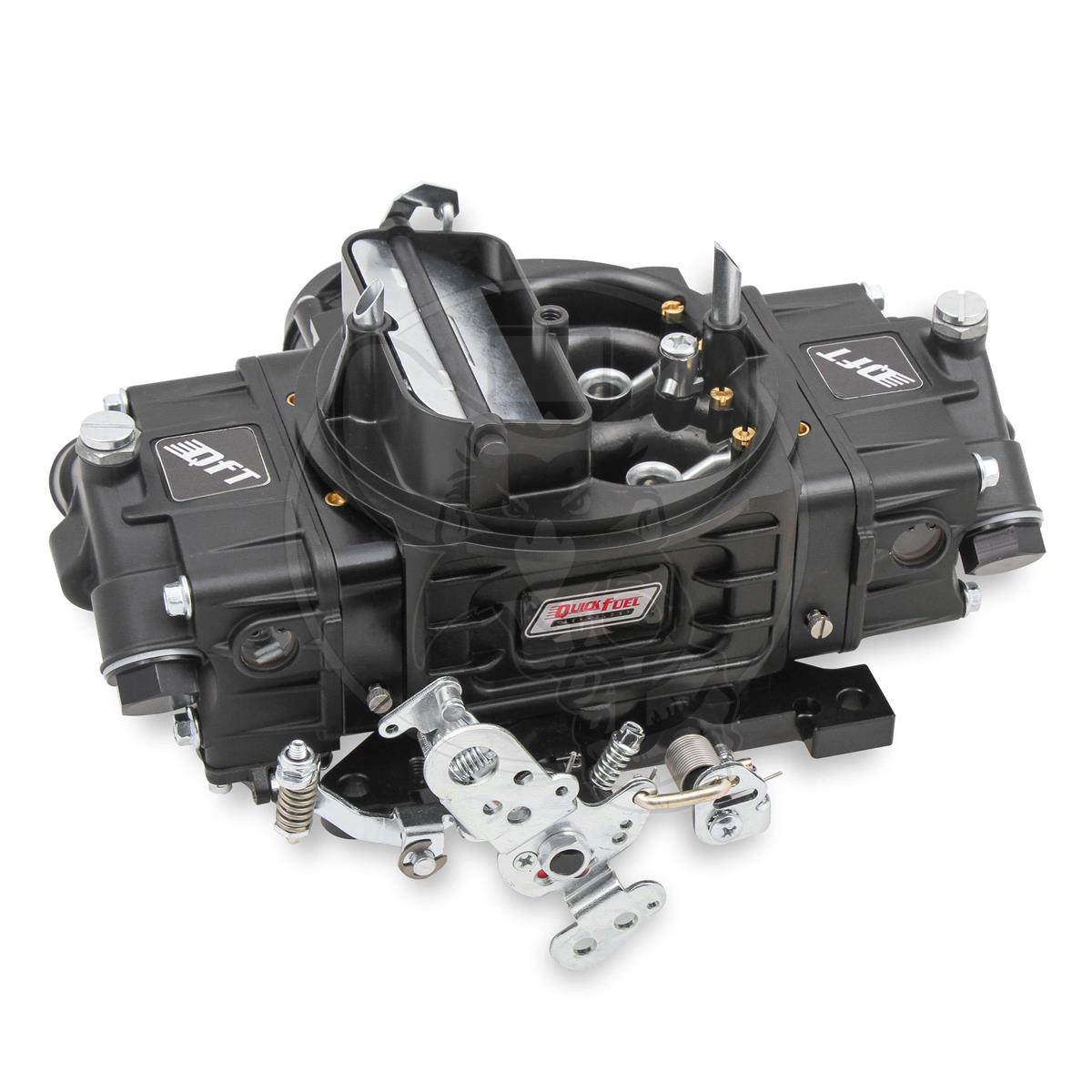

QBD-650 - QUICKFUEL BLACK DIAMOND CARBY 650 CFM SQUARE BORE DOUBLE PUMP

SS-Series Carburetor Black Diamond,650CFM

Super Street Series carburetors combine street-friendly drivability and track-capable performance in a single value-oriented package. Setting them apart from ordinary street carbs,they feature billet dual metering blocks and throttle-bodies that offer tighter tolerances and eliminate porosity. Not only are Super Street Series carbs available with both vacuum or mechanical secondaries,QFT™also offers models designed and calibrated specifically for E85 fuel and blow-through forced induction applications. Running alternative fuel or boost no longer requires an expensive custom carburetor. All SS-Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown,GM 700 R4 mounting holes,and ability to mount brackets for Chrysler vehicles. Available in 8 different sizes,bolting on the ultimate street/strip carburetor has never been easier.

Even a carburetor that performs great can still be an eyesore,but it doesn't have to be that way. Quick Fuel Technology's proprietary Black Diamond®coating offers excellent corrosion resistance as well as a durable finish that easily stands up to dirt and oil. In addition to great looks,the PTFE coating reduces fuel temperature by six percent for improved performance.

Barrels	4
Billet Color	Black
Booster	Down Leg
Brand	Quick Fuel
Carburetor Use	Performance and Race
CFM	650
Choke	Electric
Circuit	2
Condition	New
Emission Code	3
Finish	Black
Fuel	Gasoline
Fuel System	Carbureted
High Speed Air Bleed	31
Idle Air Bleed Size	71
Marine Use	No
Material	Aluminum
Model	Super Street Series
Primary Main Jet	70
Primary Power Valve	6.5
Primary Pump Nozzle Size	31
Product Type	Carburetor
Secondaries	Mechanical
Secondary Main Jet	76
Supercharged Application	No
Throttle Bore	1-11/16 inch
Warning	California Proposition 65
Warranty	Limited 90 Day
