QM-650 - QUICKFUEL CARBY 650CFM MARINE BLACK MECHANICAL SECONDARY ELECTRIC CHOKE

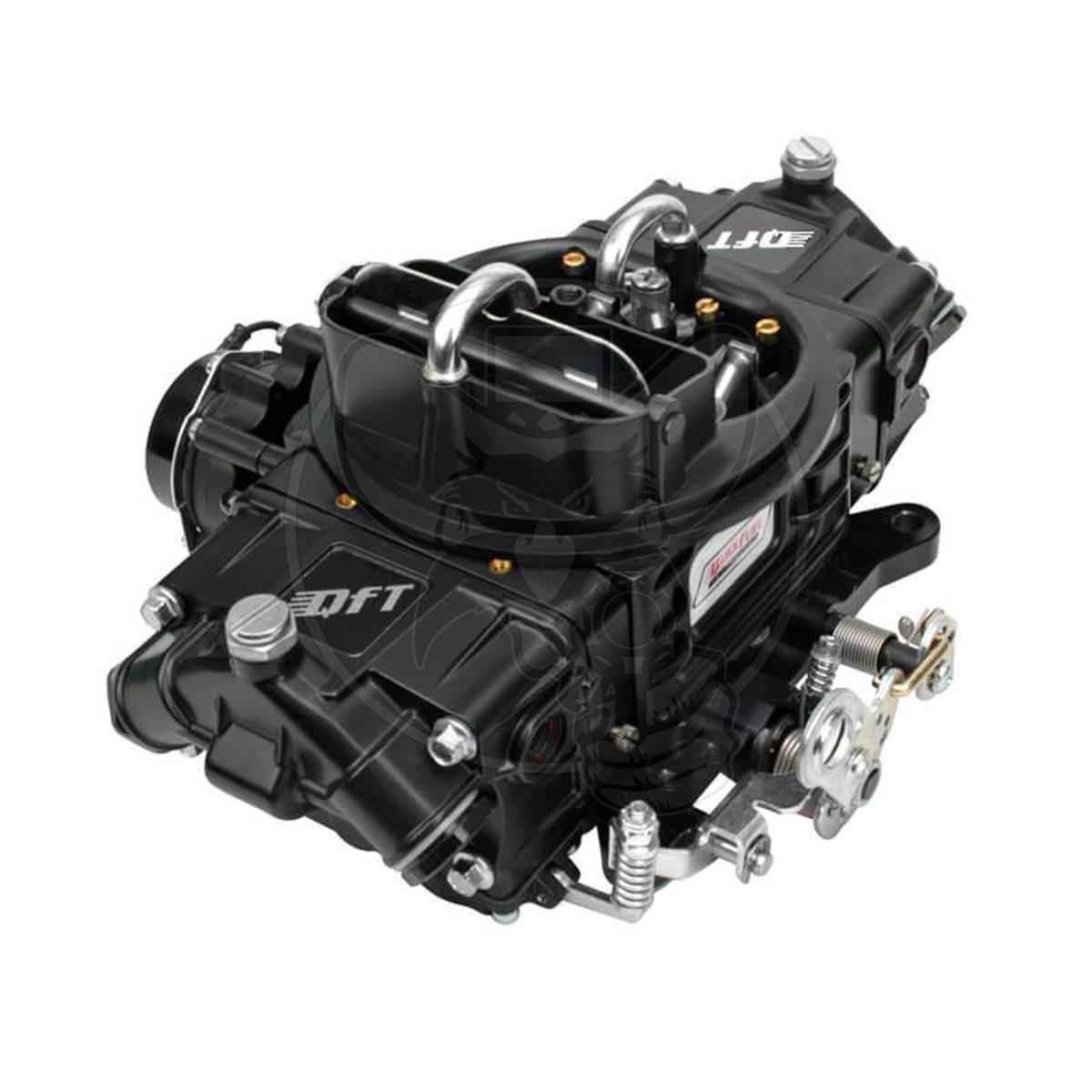

M-Series 650CFM Marine Carburetor

QFT brings its engineering expertise to the marine market. The M-Series feature billet-style metering blocks and throttle bodies for more precise performance and exceptional strength.

• Exclusive Black Diamond coating for enhanced corrosion protection and appearance,coating provides a 6% reduction in fuel temperature
• Electric choke - Fully adjustable,one wire hookup
• J tubes to prevent spillage
• PTFE-coated throttle shafts with PTFE bearing ribbons and stainless steel plates
• Built-in sight glass windows for easy float adjustment
• Changeable primary idle feed and power valve channel restrictions,plus changeable idle air and high speed bleeds
• QuickLink™secondary adjustment for fast and easy changing of opening rates
• Available in eight different sizes from 350-1,050 cfm

Barrels	4
Billet Color	Diecast-No Billet
Booster	Down Leg
Brand	Quick Fuel
Carburetor Use	Marine
CFM	650
Choke	Electric
Circuit	2
Condition	New
Emission Code	3
Finish	Black
Fuel	Gasoline
Fuel System	Carbureted
High Speed Air Bleed	31
Idle Air Bleed Size	70
Marine Engine Size	Universal
Marine Use	Yes
Material	Aluminum
Model	4150
Primary Main Jet	71
Primary Power Valve	65
Primary Pump Nozzle Size	32
Product Type	Quick Fuel Marine Carburetor
Secondaries	Mechanical
Secondary Main Jet	78
Supercharged Application	No
Throttle Bore	1-11/16 inch
Warning	California Proposition 65
Warranty	Limited 90 Day
