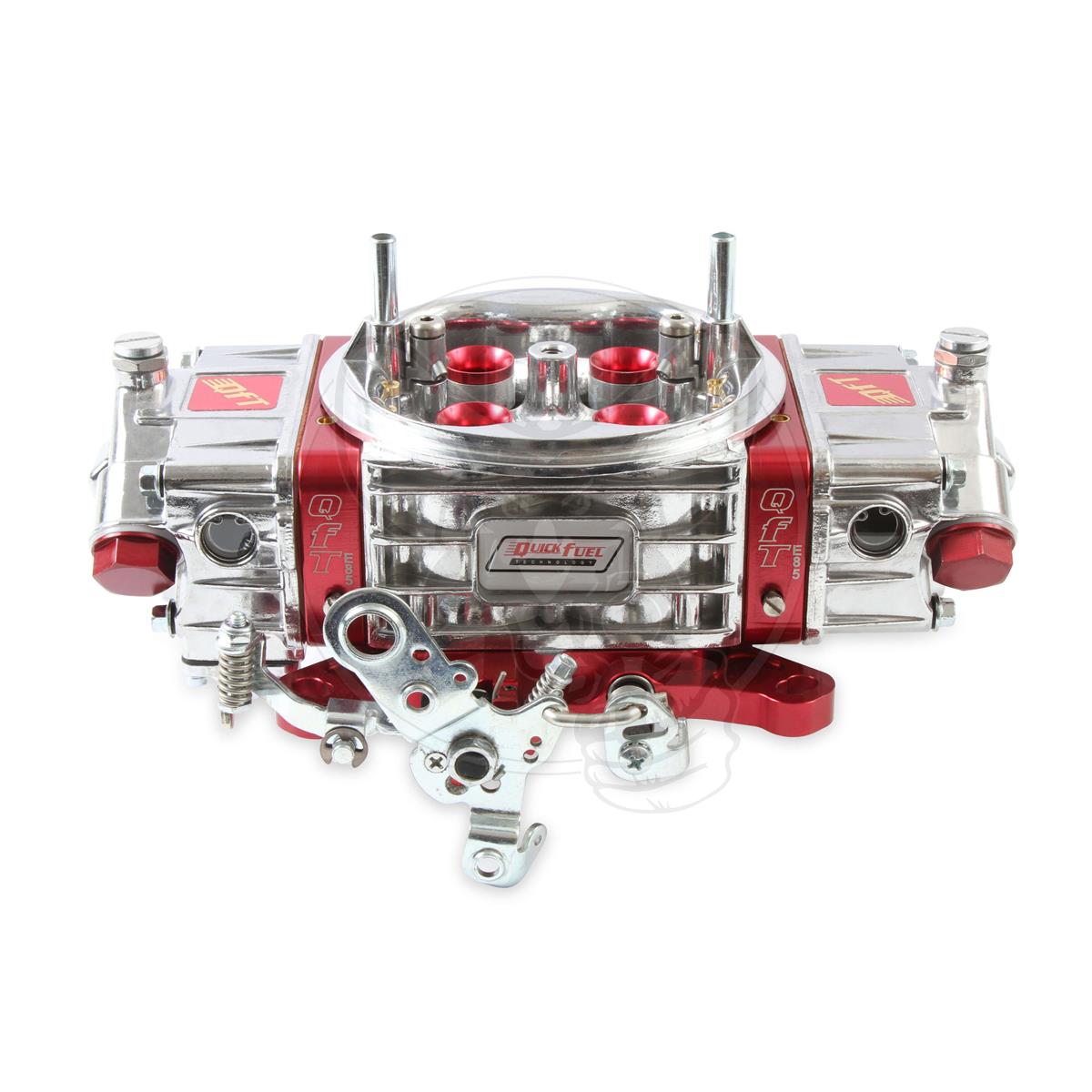

QQ-750-E85BAN - QUICKFUEL CARBY 750CFM STREET RACE E85 W/BLOW THRU S/CHARGER

Q-Series 750CFM Drag Race Blow-Thru Annular Booster E85

Ideally suited for bracket racers and weekend warriors alike,Q-Series carburetors are purpose-built for the dragstrip. To combat the g's experienced during hard launches,Q-Series carbs are equipped with notched floats and secondary jet extensions. The high-flow aluminum main body isn't just lightweight,but it also features recessed air bleed cavities for improved air flow. Die-cast venturi are machined to exacting tolerances for outstanding throttle response. Billet metering blocks ensure a uniform fuel curve,while throttle-bodies enhance durability. For those days when track conditions vary from one pass to the next,QFT's QuickLink system makes adjusting the secondaries easy on models equipped with mechanical secondaries. The Q-Series is our most comprehensive line of carburetors,with applications available for use with gasoline,methanol,and E85 fuels,forced induction,drag race,circle track,and comes in both vacuum and mechanical secondary models.

• Lightweight aluminum main body
• Vacuum and mechanical secondary models available
• Aluminum fuel bowls with dual sight glass windows
• Billet metering blocks with 4-corner idle system
• Changeable idle feed and power valve channel restrictions
• Billet aluminum throttle body provides exceptional precision and strength
• PTFE coated and sealed shafts

Barrels	4
Billet Color	Red
Booster	Annular
Brand	Quick Fuel
Carburetor Use	Performance and Race
CFM	750
Choke	None
Circuit	2
Condition	New
Emission Code	3
Finish	Shiny
Fuel	E85
Fuel System	Carbureted
High Speed Air Bleed	28
Idle Air Bleed Size	65
Marine Use	No
Material	Aluminum
Model	E85 and Methanol Fuel
Primary Main Jet	84
Primary Power Valve	45
Primary Pump Nozzle Size	35
Product Type	Carburetor
Secondaries	Mechanical
Secondary Main Jet	96
Supercharged Application	No
Throttle Bore	1-11/16 inch
Warning	California Proposition 65
Warranty	Limited 90 Day
