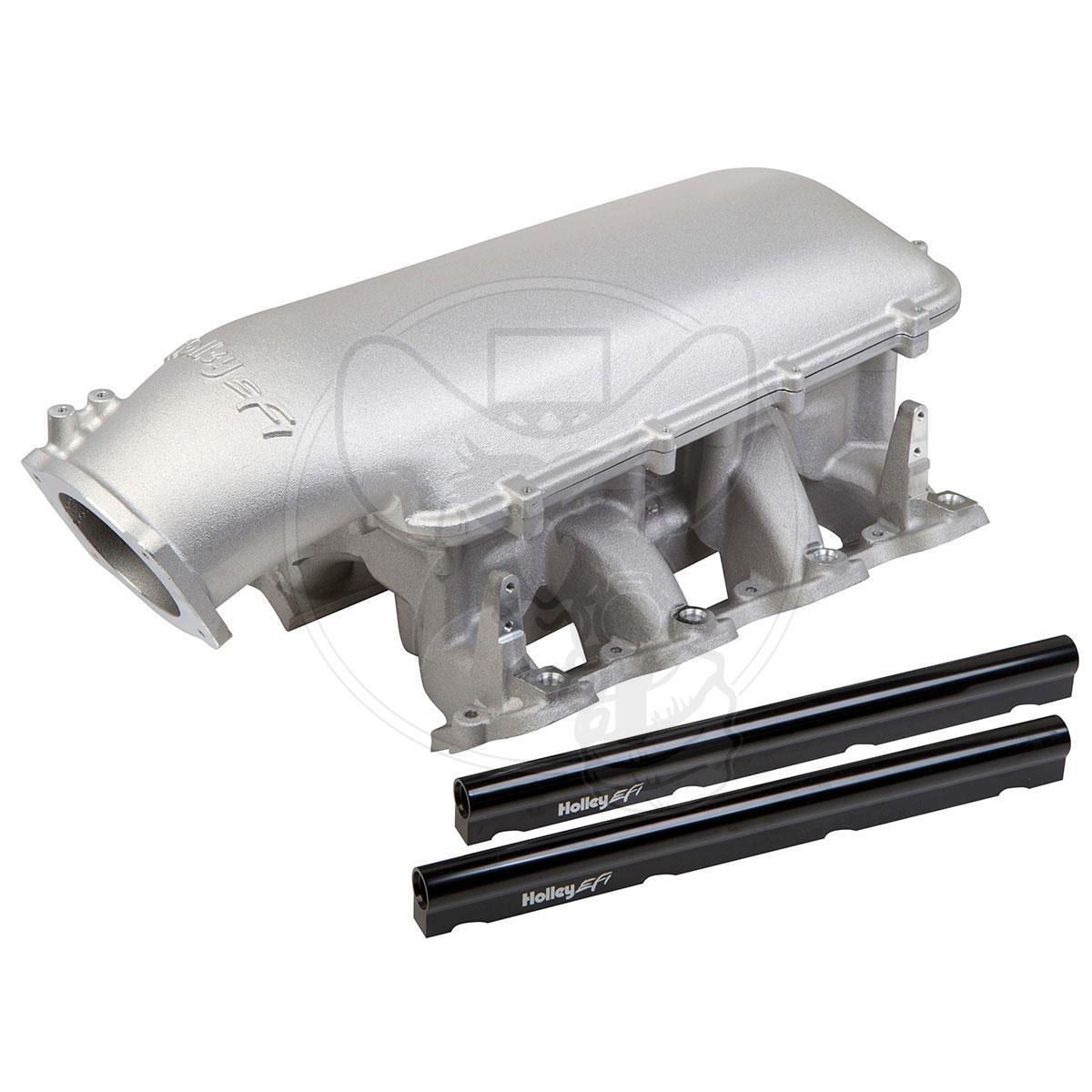

The Modular Mid-Rise intake utilizes the popular Holley LS1/LS2/LS6 cathedral port Mid-Rise 2 x 4 intake manifold along with a purpose built plenum base adapter and a Holley 92MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44",the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500-6,500 RPM and limited hood clearance. It's perfect for turbocharged,or normally aspirated applications. This manifold is modular,and the plenum adapter (PN 300-231) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems.*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
Features:
- Provides great performance to 6500 rpm for street/strip performance applications while providing the look of a racing EFI intake manifold
- Unique modular design allows the combination of a traditional dual-plane layout with an EFI manifold plenum to produce great mid-range torque without compromising top end power
- Great for supercharged or turbocharged engines
- Power band from 1500-6500 rpm
- May require an aftermarket hood for some vehicle applications.
- Cast aluminum construction
- Intended for use on all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads (recalibration of the ECU may be required when using this intake manifold design with OE ECU).
- 92MM EFI plenum top
| Categories | Air & Fuel Delivery, Engine Components |
|---|---|
| Weight | 18.7000 |
| Manufacturer Part Number | 300-126 |
| Brand | Holley |
| Part Type | Intake Manifolds |
| Interchange Part Number | 300-126 |
| Engine Type | LS Series |
| Cylinder Head Type | Cathedral Port |
| RPM Range | 1500-6500 |
| Manifold Type | Mid Rise |
| Finish | Satin |
| Construction | Cast |
| Engine | GM LS1/LS2/LS6 |
